Feature

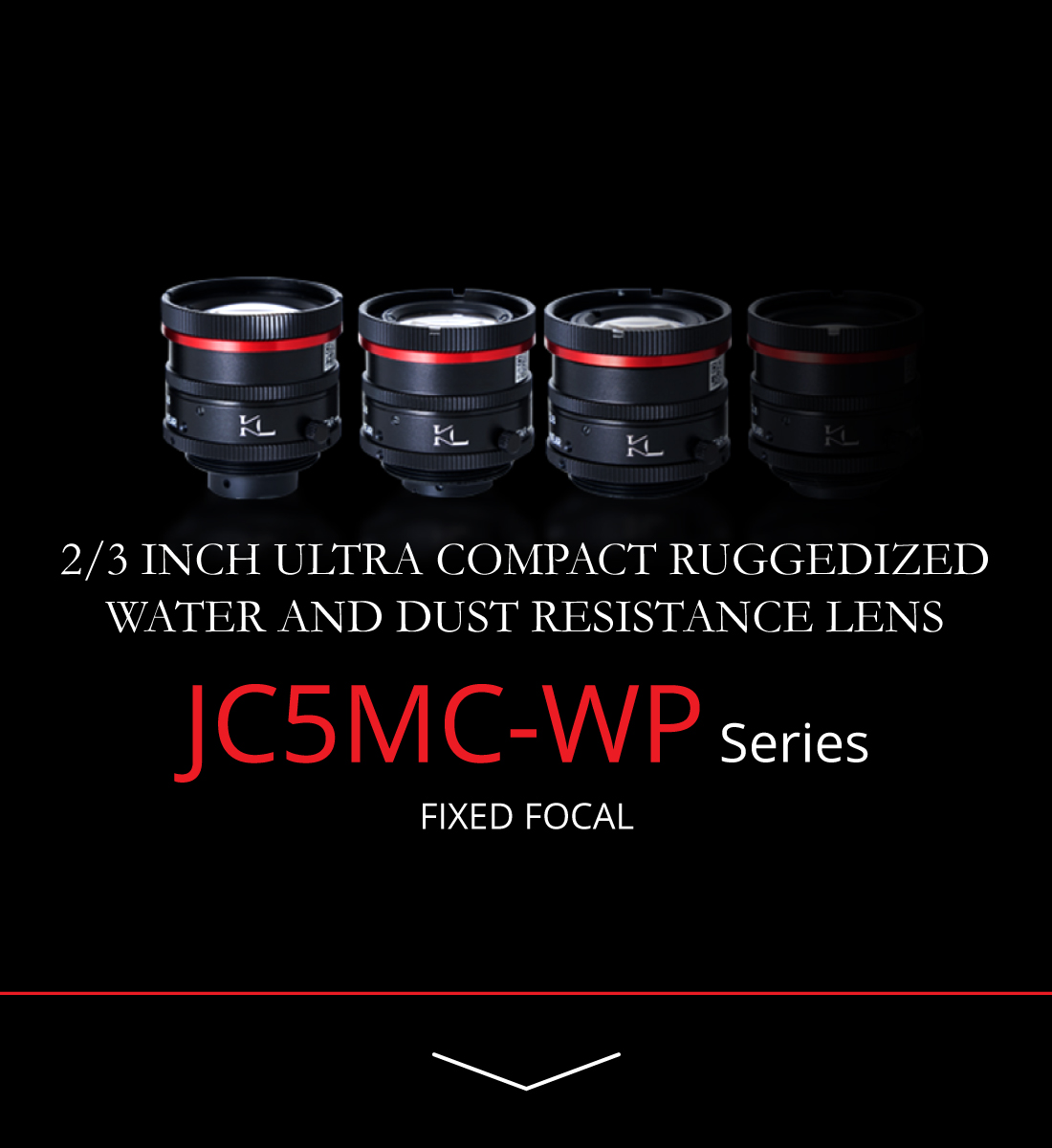

Harsh Environment Resistant Model of the JC5MC series, one of the industry’s smallest and lightest lens
Designed for Vibration and Shock Resistance and added Waterproof and Dustproof

Specification

Model	Format Size (Inch)									Focal Length	Iris Range (F-stop)	Focusing Range (m)	Mount	Field Angle(H×V)	Size(mm)
Model	4/3	1.2	1.1	1	1/1.2	2/3	1/1.8	1/2	1/3	Focal Length	Iris Range (F-stop)	Focusing Range (m)	Mount	Field Angle(H×V)	Size(mm)
LM8JC5MC-WP	-	-	-	-	-	●	●	●	●	8	F2.8〜F16	0.15〜∞	C	57.6×44.5	Φ33×27.1
LM12JC5MC-WP	-	-	-	-	-	●	●	●	●	12	F2.8〜F16	0.2〜∞	C	41.0×31.3	Φ33×27.1
LM16JC5MC-WP	-	-	-	-	-	●	●	●	●	16	F2.8〜F16	0.2〜∞	C	30.9×23.5	Φ33×27.1
LM25JC5MC-WP	-	-	-	-	-	●	●	●	●	25	F2.8〜F16	0.2〜∞	C	20.0×15.1	Φ33×27.1

Lineup

LM8JC5MC-WP

2/3"

Data Download Catalog Download Lens Selector

Model		LM8JC5MC-WP
Focal Length		8
Image Size (mm)		8.8×6.6(Φ11)
Iris Range (F-stop)		F2.8〜F16
Focusing Range (m)		0.15〜∞
Control	Iris	Manual
Control	Focus	Manual
Shooting Range at M.O.D.(mm)		178.0(H)×132.1(V)
Angle of View (Degrees)	2/3 Inch	57.6×44.4
	1/1.8 Inch	48.1×36.7
	1/2 Inch	43.1×32.9
Resolution (center,corner)
TV Distortion (%)
Back Focus in Air (mm)		13.65
Mount		C Mount
Filter Thread (mm)		M30.5×P0.5
Size(mm)(∞)		Φ33×27.1
Weight (g)		52
Temperature Range		−10°C~+50°C

LM12JC5MC-WP

2/3"

Data Download Catalog Download Lens Selector

Model		LM12JC5MC-WP
Focal Length		12
Image Size (mm)		8.8×6.6(Φ11)
Iris Range (F-stop)		F2.8〜F16
Focusing Range (m)		0.2〜∞
Control	Iris	Manual
Control	Focus	Manual
Shooting Range at M.O.D.(mm)		159.0(H)×118.1(V)
Angle of View (Degrees)	2/3 Inch	41.0×31.2
	1/1.8 Inch	33.9×25.6
	1/2 Inch	30.3×22.9
Resolution (center,corner)
TV Distortion (%)
Back Focus in Air (mm)		14.13
Mount		C Mount
Filter Thread (mm)		M30.5×P0.5
Size(mm)(∞)		Φ33×27.1
Weight (g)		52
Temperature Range		−10°C~+50°C

LM16JC5MC-WP

2/3"

Data Download Catalog Download Lens Selector

Model		LM16JC5MC-WP
Focal Length		16
Image Size (mm)		8.8×6.6(Φ11)
Iris Range (F-stop)		F2.8〜F16
Focusing Range (m)		0.2〜∞
Control	Iris	Manual
Control	Focus	Manual
Shooting Range at M.O.D.(mm)		117.0(H)×88.1(V)
Angle of View (Degrees)	2/3 Inch	30.9×23.4
	1/1.8 Inch	25.5×19.2
	1/2 Inch	22.7×17.3
Resolution (center,corner)
TV Distortion (%)
Back Focus in Air (mm)		14.61
Mount		C Mount
Filter Thread (mm)		M30.5×P0.5
Size(mm)(∞)		Φ33×27.1
Weight (g)		50
Temperature Range		−10°C~+50°C

LM25JC5MC-WP

2/3"

Data Download Catalog Download Lens Selector

Model		LM25JC5MC-WP
Focal Length		25
Image Size (mm)		8.8×6.6(Φ11)
Iris Range (F-stop)		F2.8〜F16
Focusing Range (m)		0.2〜∞
Control	Iris	Manual
Control	Focus	Manual
Shooting Range at M.O.D.(mm)		75.0(H)×56.1(V)
Angle of View (Degrees)	2/3 Inch	20.0×15.0
	1/1.8 Inch	16.4×12.4
	1/2 Inch	14.6×11.1
Resolution (center,corner)
TV Distortion (%)
Back Focus in Air (mm)		15.09
Mount		C Mount
Filter Thread (mm)		M30.5×P0.5
Size(mm)(∞)		Φ33×27.1
Weight (g)		51
Temperature Range		−10°C~+50°C
