Feature

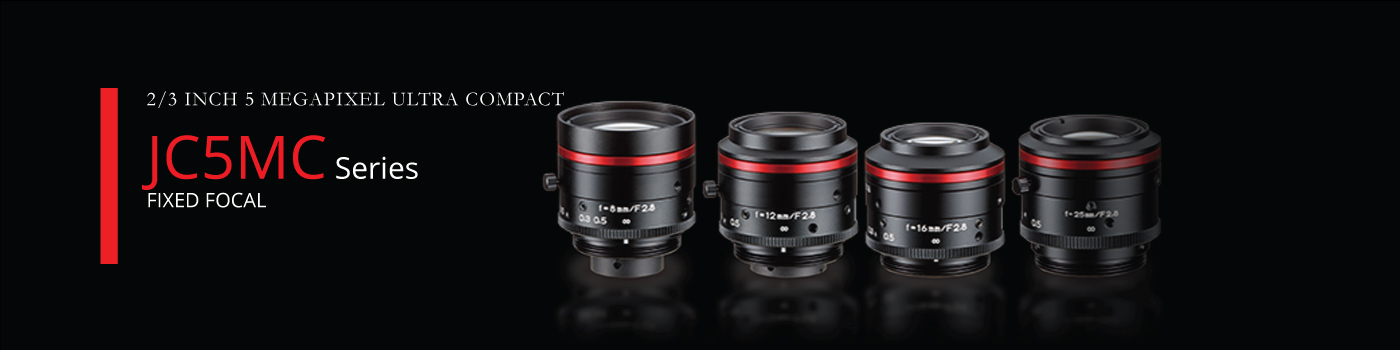

One of the industry’s smallest and lightest 5 megapixel lenses.
Roughly half the size of Kowa’s current 2/3” 5MP JC5M2 series lenses.
Unique mechanical design to guard against strong vibration and shock.
Easy to change the iris to the marked F-number by click-type iris mechanism. (F2.8, 4, 5.6, 8 and 16)

Specification

Model	Format Size (Inch)									Focal Length	Iris Range (F-stop)	Focusing Range (m)	Mount	Field Angle(H×V)	Size(mm)
Model	4/3	1.2	1.1	1	1/1.2	2/3	1/1.8	1/2	1/3	Focal Length	Iris Range (F-stop)	Focusing Range (m)	Mount	Field Angle(H×V)	Size(mm)
LM8JC5MC	-	-	-	-	-	●	●	●	●	8	F2.8〜F16	0.15〜∞	C	57.6×44.4	Φ32×27
LM12JC5MC	-	-	-	-	-	●	●	●	●	12	F2.8〜F16	0.2〜∞	C	41.0×31.2	Φ32×26.8
LM16JC5MC	-	-	-	-	-	●	●	●	●	16	F2.8〜F16	0.2〜∞	C	30.9×23.4	Φ32×26.5
LM25JC5MC	-	-	-	-	-	●	●	●	●	25	F2.8〜F16	0.2〜∞	C	20.0×15.0	Φ32×25
LM35JC5MC	-	-	-	◇	◇	●	●	●	●	35	F2.8〜F16	0.2〜∞	C	14.0×10.6	Φ32×27.9
LM50JC5MC	-	-	-	-	◇	●	●	●	●	50	F2.8〜F16	0.3〜∞	C	10.0×7.5	Φ32×34.7

Lineup

LM8JC5MC

2/3"

Data Download Catalog Download Lens Selector

Model		LM8JC5MC
Focal Length		8
Image Size (mm)		8.8×6.6(Φ11)
Iris Range (F-stop)		F2.8〜F16
Focusing Range (m)		0.15〜∞
Control	Iris	Manual
Control	Focus	Manual
Shooting Range at M.O.D.(mm)		178.0(H)×132.0(V)
Angle of View (Degrees)	2/3 Inch	57.6×44.4
	1/1.8 Inch	48.1×36.7
	1/2 Inch	43.1×32.8
Resolution (center,corner)		160lp/mm, 100lp/mm
TV Distortion (%)		-0.85
Back Focus in Air (mm)		10.8
Mount		C Mount
Filter Thread (mm)		M30.5×P0.5
Size(mm)(∞)		Φ32×27
Weight (g)		55
Temperature Range		−10°C~+50°C

LM12JC5MC

2/3"

Data Download Catalog Download Lens Selector

Model		LM12JC5MC
Focal Length		12
Image Size (mm)		8.8×6.6(Φ11)
Iris Range (F-stop)		F2.8〜F16
Focusing Range (m)		0.2〜∞
Control	Iris	Manual
Control	Focus	Manual
Shooting Range at M.O.D.(mm)		159.0(H)×118.0(V)
Angle of View (Degrees)	2/3 Inch	41.0×31.2
	1/1.8 Inch	33.9×25.6
	1/2 Inch	30.3×22.8
Resolution (center,corner)		160lp/mm, 100lp/mm
TV Distortion (%)		-0.43
Back Focus in Air (mm)		12.6
Mount		C Mount
Filter Thread (mm)		*
Size(mm)(∞)		Φ32×26.8
Weight (g)		55
Temperature Range		−10°C~+50°C

LM16JC5MC

2/3"

Data Download Catalog Download Lens Selector

Model		LM16JC5MC
Focal Length		16
Image Size (mm)		8.8×6.6(Φ11)
Iris Range (F-stop)		F2.8〜F16
Focusing Range (m)		0.2〜∞
Control	Iris	Manual
Control	Focus	Manual
Shooting Range at M.O.D.(mm)		117.0(H)×88.0(V)
Angle of View (Degrees)	2/3 Inch	30.9×23.4
	1/1.8 Inch	25.5×19.2
	1/2 Inch	22.7×17.2
Resolution (center,corner)		160lp/mm, 100lp/mm
TV Distortion (%)		-0.09
Back Focus in Air (mm)		14.7
Mount		C Mount
Filter Thread (mm)		*
Size(mm)(∞)		Φ32×26.5
Weight (g)		55
Temperature Range		−10°C~+50°C

LM25JC5MC

2/3"

Data Download Catalog Download Lens Selector

Model		LM25JC5MC
Focal Length		25
Image Size (mm)		8.8×6.6(Φ11)
Iris Range (F-stop)		F2.8〜F16
Focusing Range (m)		0.2〜∞
Control	Iris	Manual
Control	Focus	Manual
Shooting Range at M.O.D.(mm)		75.0(H)×56.0(V)
Angle of View (Degrees)	2/3 Inch	20.0×15.0
	1/1.8 Inch	16.4×12.4
	1/2 Inch	14.6×11.0
Resolution (center,corner)		160lp/mm, 100lp/mm
TV Distortion (%)		0.06
Back Focus in Air (mm)		11.7
Mount		C Mount
Filter Thread (mm)		*
Size(mm)(∞)		Φ32×25
Weight (g)		55
Temperature Range		−10°C~+50°C

LM35JC5MC

2/3"

Data Download Catalog Download Lens Selector

Model		LM35JC5MC
Focal Length		35
Image Size (mm)		8.8×6.6(Φ11)
Iris Range (F-stop)		F2.8〜F16
Focusing Range (m)		0.2〜∞
Control	Iris	Manual
Control	Focus	Manual
Shooting Range at M.O.D.(mm)		48.0(H)×36.0(V)
Angle of View (Degrees)	2/3 Inch	14.0×10.6
	1/1.8 Inch	11.5×8.7
	1/2 Inch	10.3×7.7
Resolution (center,corner)		160lp/mm, 125lp/mm
TV Distortion (%)		-0.02
Back Focus in Air (mm)		13.3
Mount		C Mount
Filter Thread (mm)		M30.5×P0.5
Size(mm)(∞)		Φ32×27.9
Weight (g)		50
Temperature Range		−10°C~+50°C

LM50JC5MC

2/3"

Data Download Catalog Download Lens Selector

Model		LM50JC5MC
Focal Length		50
Image Size (mm)		8.8×6.6(Φ11)
Iris Range (F-stop)		F2.8〜F16
Focusing Range (m)		0.3〜∞
Control	Iris	Manual
Control	Focus	Manual
Shooting Range at M.O.D.(mm)		49.0(H)×37.0(V)
Angle of View (Degrees)	2/3 Inch	10.0×7.5
	1/1.8 Inch	8.2×6.2
	1/2 Inch	7.3×5.5
Resolution (center,corner)		160lp/mm, 125lp/mm
TV Distortion (%)		-0.01
Back Focus in Air (mm)		14.9
Mount		C Mount
Filter Thread (mm)		M30.5×P0.5
Size(mm)(∞)		Φ32×34.7
Weight (g)		60
Temperature Range		−10°C~+50°C
