Feature

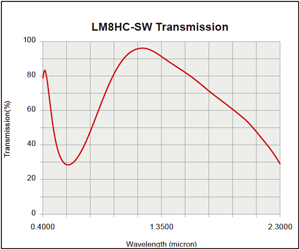

Incorporating Kowa’s special coating technology, the 1″ format HC-SW series will maintains high transmission from 800nm to 1900nm.
Designed for Near Infrared(NIR) and Short Wavelength Infrared (SWIR) applications.

Specification

Model	Format Size (Inch)									Focal Length	Iris Range (F-stop)	Focusing Range (m)	Mount	Field Angle(H×V)	Size(mm)
Model	4/3	1.2	1.1	1	1/1.2	2/3	1/1.8	1/2	1/3	Focal Length	Iris Range (F-stop)	Focusing Range (m)	Mount	Field Angle(H×V)	Size(mm)
LM6HC-SW	-	-	-	●	●	●	●	●	-	6	F1.8〜F11	0.1〜∞	C	96.8×79.4	Φ54×56.2
LM8HC-SW	-	-	-	●	●	●	●	●	●	8	F1.4〜F16	0.1〜∞	C	79.4×63.0	Φ57×58
LM12HC-SW	-	-	◇	●	●	●	●	●	●	12.5	F1.4〜F16	0.3〜∞	C	55.6×42.5	Φ43×51.5
LM16HC-SW	-	-	◇	●	●	●	●	●	●	16	F1.4〜F16	0.3〜∞	C	44.3×33.6	Φ43×52.9
LM25HC-SW	-	◇	◇	●	●	●	●	●	●	25	F1.4〜F16	0.3〜∞	C	29.3×22.0	Φ43×43
LM35HC-SW	-	◇	◇	●	●	●	●	●	●	35	F1.4〜F16	0.3〜∞	C	20.9×15.8	Φ43×43
LM50HC-SW	-	-	◇	●	●	●	●	●	●	50	F1.4〜F16	0.5〜∞	C	14.5×10.8	Φ49×48

Lineup

LM6HC-SW

1"

Data Download Catalog Download Lens Selector

Model		LM6HC-SW
Focal Length		6
Image Size (mm)		12.8×9.6(Φ16)
Iris Range (F-stop)		F1.8〜F11
Focusing Range (m)		0.1〜∞
Control	Iris	Manual
Control	Focus	Manual
Shooting Range at M.O.D.(mm)		267.4(H)×196.3(V)
Angle of View (Degrees)	1 Inch	96.8×79.4
	2/3 Inch	74.1×58.0
	1/1.8 Inch	62.6×48.2
Resolution (center,corner)
TV Distortion (%)
Back Focus in Air (mm)		11.1
Mount		C Mount
Filter Thread (mm)		−
Size(mm)(∞)		Φ54×56.2
Weight (g)		215
Temperature Range		−10°C~+50°C

LM8HC-SW

1"

Data Download Catalog Download Lens Selector

Model		LM8HC-SW
Focal Length		8
Image Size (mm)		12.8×9.6(Φ16)
Iris Range (F-stop)		F1.4〜F16
Focusing Range (m)		0.1〜∞
Control	Iris	Manual
Control	Focus	Manual
Shooting Range at M.O.D.(mm)		196.0(H)×143.2(V)
Angle of View (Degrees)	1 Inch	79.4×63.0
	2/3 Inch	58.3×44.7
	1/1.8 Inch	48.5×36.9
Resolution (center,corner)		120lp/mm, 80lp/mm
TV Distortion (%)		-1.2
Back Focus in Air (mm)		11.2
Mount		C Mount
Filter Thread (mm)		M55×P0.75
Size(mm)(∞)		Φ57×58
Weight (g)		205
Temperature Range		−10°C~+50°C

LM12HC-SW

1"

Data Download Catalog Download Lens Selector

Model		LM12HC-SW
Focal Length		12.5
Image Size (mm)		12.8×9.6(Φ16)
Iris Range (F-stop)		F1.4〜F16
Focusing Range (m)		0.3〜∞
Control	Iris	Manual
Control	Focus	Manual
Shooting Range at M.O.D.(mm)		330.6(H)×243.5(V)
Angle of View (Degrees)	1 Inch	55.6×42.5
	2/3 Inch	39.1×29.5
	1/1.8 Inch	32.1×24.2
Resolution (center,corner)		120lp/mm, 80lp/mm
TV Distortion (%)		-1.58
Back Focus in Air (mm)		12.6
Mount		C Mount
Filter Thread (mm)		M35.5×P0.5
Size(mm)(∞)		Φ43×51.5
Weight (g)		160
Temperature Range		−10°C~+50°C

LM16HC-SW

1"

Data Download Catalog Download Lens Selector

Model		LM16HC-SW
Focal Length		16
Image Size (mm)		12.8×9.6(Φ16)
Iris Range (F-stop)		F1.4〜F16
Focusing Range (m)		0.3〜∞
Control	Iris	Manual
Control	Focus	Manual
Shooting Range at M.O.D.(mm)		251.5(H)×186.2(V)
Angle of View (Degrees)	1 Inch	44.3×33.6
	2/3 Inch	30.8×23.2
	1/1.8 Inch	25.3×19.0
Resolution (center,corner)		120lp/mm, 80lp/mm
TV Distortion (%)		-1.0
Back Focus in Air (mm)		12.6
Mount		C Mount
Filter Thread (mm)		M35.5×P0.5
Size(mm)(∞)		Φ43×52.9
Weight (g)		150
Temperature Range		−10°C~+50°C

LM25HC-SW

1"

Data Download Catalog Download Lens Selector

Model		LM25HC-SW
Focal Length		25
Image Size (mm)		12.8×9.6(Φ16)
Iris Range (F-stop)		F1.4〜F16
Focusing Range (m)		0.3〜∞
Control	Iris	Manual
Control	Focus	Manual
Shooting Range at M.O.D.(mm)		160.7(H)×119.2(V)
Angle of View (Degrees)	1 Inch	29.3×22.0
	2/3 Inch	20.2×15.1
	1/1.8 Inch	16.5×12.4
Resolution (center,corner)		120lp/mm, 80lp/mm
TV Distortion (%)		-1.0
Back Focus in Air (mm)		16.5
Mount		C Mount
Filter Thread (mm)		M35.5×P0.5
Size(mm)(∞)		Φ43×43
Weight (g)		135
Temperature Range		−10°C~+50°C

LM35HC-SW

1"

Data Download Catalog Download Lens Selector

Model		LM35HC-SW
Focal Length		35
Image Size (mm)		12.8×9.6(Φ16)
Iris Range (F-stop)		F1.4〜F16
Focusing Range (m)		0.3〜∞
Control	Iris	Manual
Control	Focus	Manual
Shooting Range at M.O.D.(mm)		110.1(H)×82.0(V)
Angle of View (Degrees)	1 Inch	20.9×15.8
	2/3 Inch	14.4×10.8
	1/1.8 Inch	11.8×8.8
Resolution (center,corner)		120lp/mm, 80lp/mm
TV Distortion (%)		-0.5
Back Focus in Air (mm)		16.8
Mount		C Mount
Filter Thread (mm)		M35.5×P0.5
Size(mm)(∞)		Φ43×43
Weight (g)		135
Temperature Range		−10°C~+50°C

LM50HC-SW

1"

Data Download Catalog Download Lens Selector

Model		LM50HC-SW
Focal Length		50
Image Size (mm)		12.8×9.6(Φ16)
Iris Range (F-stop)		F1.4〜F16
Focusing Range (m)		0.5〜∞
Control	Iris	Manual
Control	Focus	Manual
Shooting Range at M.O.D.(mm)		121.8(H)×91.3(V)
Angle of View (Degrees)	1 Inch	14.5×10.8
	2/3 Inch	10.0×7.5
	1/1.8 Inch	8.2×6.2
Resolution (center,corner)		120lp/mm, 80lp/mm
TV Distortion (%)		0.05
Back Focus in Air (mm)		14.8
Mount		C Mount
Filter Thread (mm)		M40.5×P0.5
Size(mm)(∞)		Φ49×48
Weight (g)		210
Temperature Range		−10°C~+50°C
