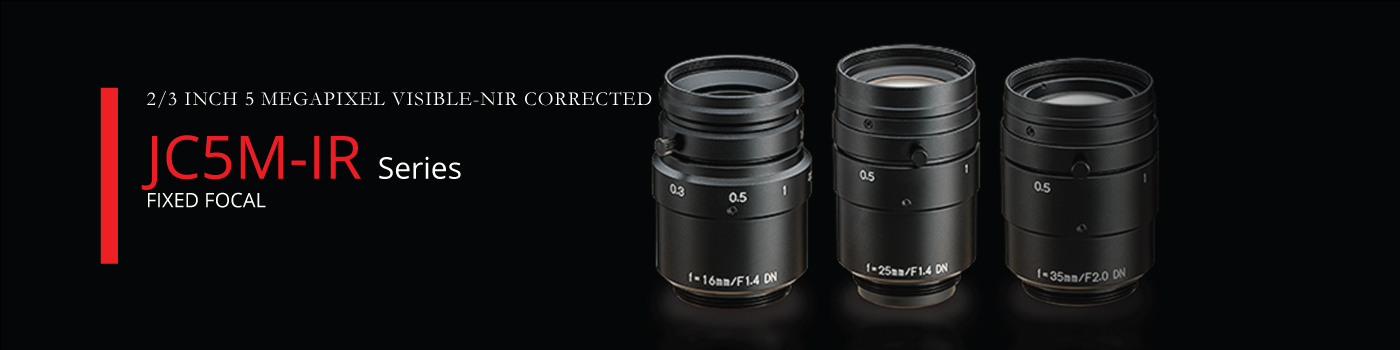

Kowa Skymech | Industrial Lens | JC5M-IR Series

SIGN IN | REGISTER

Feature

5 megapixel lens
IR corrected design
Fast F-stop of F1.4 (*LM35JC5M-IR is F2.0)
Low distortion

Reduction of visible-NIR focus shift

Visible design lens

IR Corrected design lens

Examples

Specification

Model	Format Size (Inch)									Focal Length	Iris Range (F-stop)	Focusing Range (m)	Mount	Field Angle(H×V)	Size(mm)
Model	4/3	1.2	1.1	1	1/1.2	2/3	1/1.8	1/2	1/3	Focal Length	Iris Range (F-stop)	Focusing Range (m)	Mount	Field Angle(H×V)	Size(mm)
LM16JC5M-IR	-	-	-	-	-	●	●	●	●	16	F1.4〜F16	0.3〜∞	C	30.9×23.2	Φ34×44.5
LM25JC5M-IR	-	-	-	-	◇	●	●	●	●	25	F1.4〜F16	0.3〜∞	C	20.1×15.1	Φ34×47
LM35JC5M-IR	-	-	-	-	◇	●	●	●	●	35	F2.0〜F22	0.3〜∞	C	13.9×10.5	Φ34×43

Lineup

LM16JC5M-IR

2/3"

Data Download Catalog Download Lens Selector

Model		LM16JC5M-IR
Focal Length		16
Image Size (mm)		8.8×6.6(Φ11)
Iris Range (F-stop)		F1.4〜F16
Focusing Range (m)		0.3〜∞
Control	Iris	Manual
Control	Focus	Manual
Shooting Range at M.O.D.(mm)		171.4(H)×127.4(V)
Angle of View (Degrees)	2/3 Inch	30.9×23.2
	1/1.8 Inch	25.4×19.0
	1/2 Inch	22.6×16.9
Resolution (center,corner)		120lp/mm, 80lp/mm
TV Distortion (%)		-0.8
Back Focus in Air (mm)		14.7
Mount		C Mount
Filter Thread (mm)		M27×P0.5
Size(mm)(∞)		Φ34×44.5
Weight (g)		100
Temperature Range		−10°C~+50°C

LM25JC5M-IR

2/3"

Data Download Catalog Download Lens Selector

Model		LM25JC5M-IR
Focal Length		25
Image Size (mm)		8.8×6.6(Φ11)
Iris Range (F-stop)		F1.4〜F16
Focusing Range (m)		0.3〜∞
Control	Iris	Manual
Control	Focus	Manual
Shooting Range at M.O.D.(mm)		113.3(H)×84.5(V)
Angle of View (Degrees)	2/3 Inch	20.1×15.1
	1/1.8 Inch	16.5×12.4
	1/2 Inch	14.6×11.0
Resolution (center,corner)		120lp/mm, 80lp/mm
TV Distortion (%)		-0.3
Back Focus in Air (mm)		12
Mount		C Mount
Filter Thread (mm)		M30.5×P0.5
Size(mm)(∞)		Φ34×47
Weight (g)		110
Temperature Range		−10°C~+50°C

LM35JC5M-IR

2/3"

Data Download Catalog Download Lens Selector

Model		LM35JC5M-IR
Focal Length		35
Image Size (mm)		8.8×6.6(Φ11)
Iris Range (F-stop)		F2.0〜F22
Focusing Range (m)		0.3〜∞
Control	Iris	Manual
Control	Focus	Manual
Shooting Range at M.O.D.(mm)		75.8(H)×56.6(V)
Angle of View (Degrees)	2/3 Inch	13.9×10.5
	1/1.8 Inch	11.4×8.3
	1/2 Inch	10.2×7.6
Resolution (center,corner)		120lp/mm, 80lp/mm
TV Distortion (%)		-0.3
Back Focus in Air (mm)		19.2
Mount		C Mount
Filter Thread (mm)		M30.5×P0.5
Size(mm)(∞)		Φ34×43
Weight (g)		100
Temperature Range		−10°C~+50°C
